Herkunftsort:
CHINA
Markenname:
Sinoseen
Zertifizierung:
RoHS、ISO9001、CE
Modellnummer:
SNS-USB360-1.0

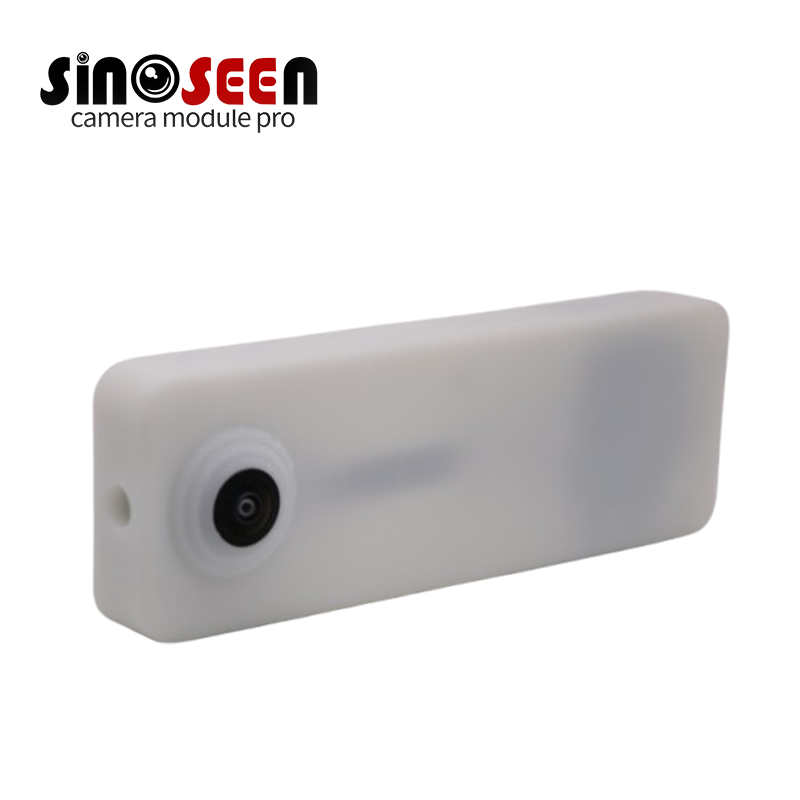

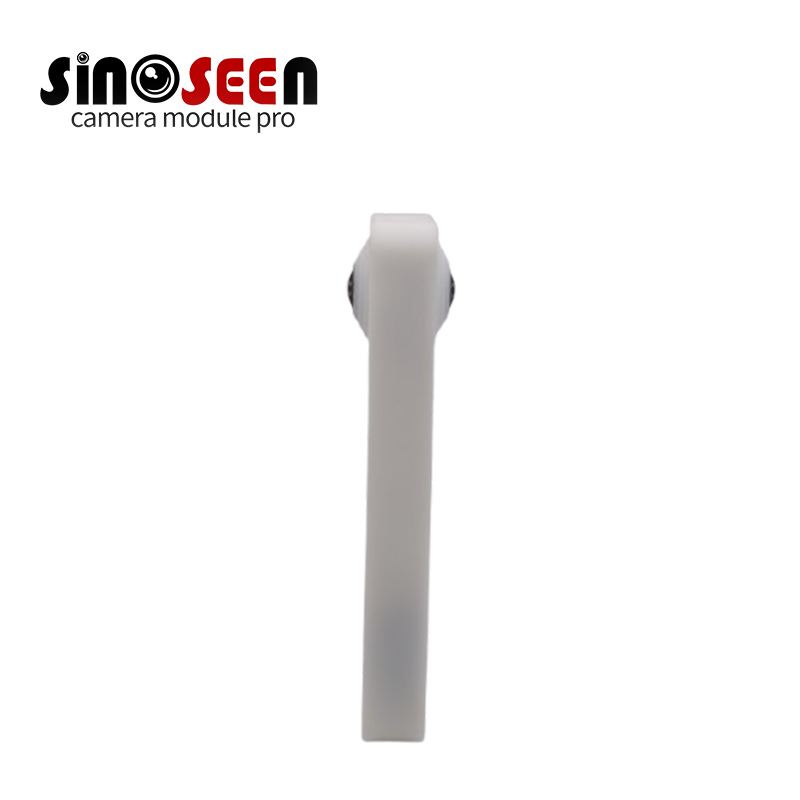

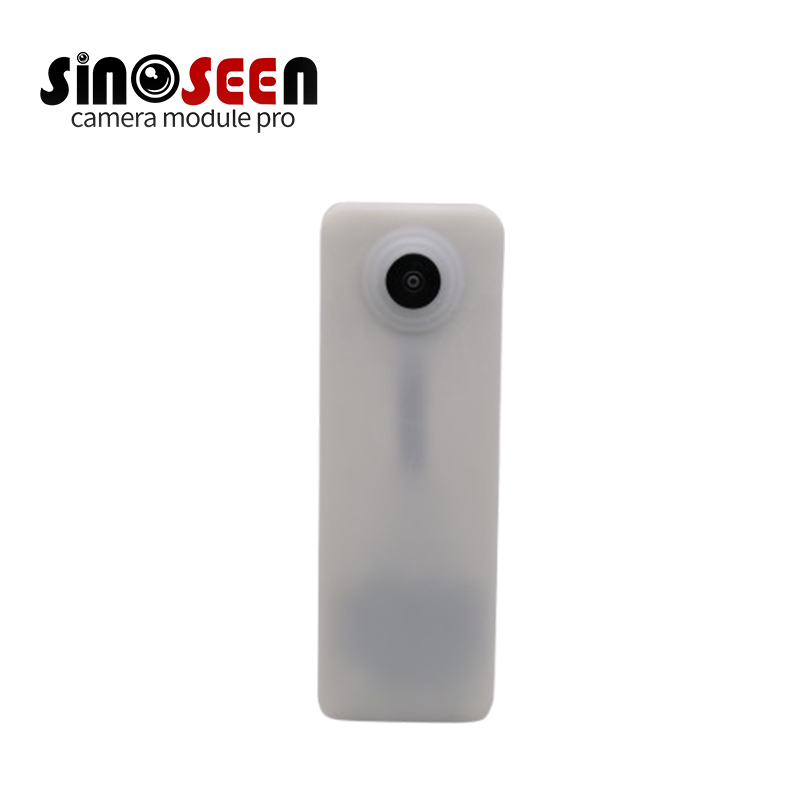

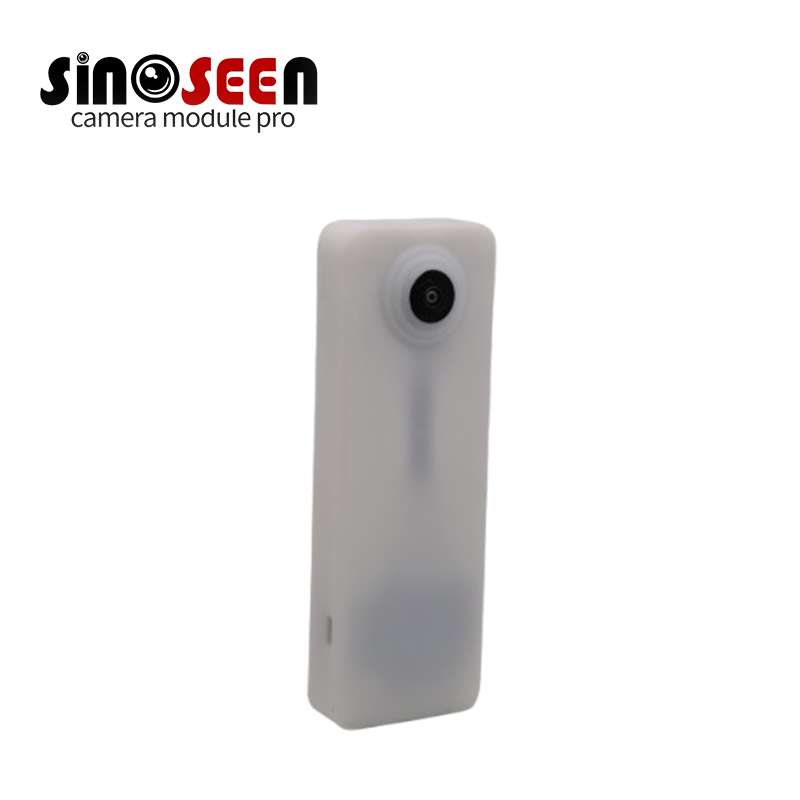

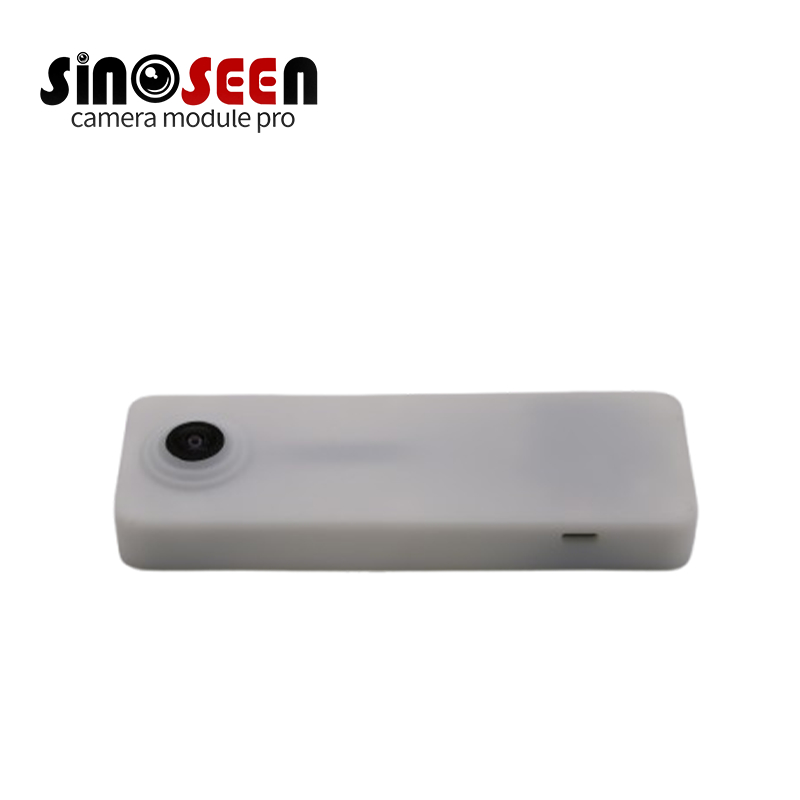

The SNS-USB360-1.0 is a high-definition USB 360° panoramic camera. It features a 1/2.4-inch sensor and HD 1536x1536 pixels, capable of 360° video stitching at 3576x1536 @ 30FPS. It supports H264/H265 video formats and connects via Type-C interface. The camera is UVC compatible and works without drivers via USB2.0 OTG.
Advanced imaging controls include AEC, AEB, AGC, and adjustable parameters like brightness, contrast, color saturation, hue, sharpness, gamma, white balance, backlight, and exposure. The 210° FOV lens delivers wide coverage, while the compact board (150x55mm) and 1-1.5m cable ensure easy installation in VR devices, surveillance, video conferencing, and industrial applications.
| Module No | SNS-USB360-1.0 |
|---|---|
| Pixel Size | 3.5 μm × 3.5 μm |
| Effective Pixels | HD 1536(H) × 1536(V) |
| Video Output Format | H.264 / H.265 |
| 360° Stitching Resolution | 3576 × 1536 @ 30fps |
| Image Sensor Size | 1/2.4" |
| SNR (Max) | TBD dB |
| Dynamic Range | TBD dB |
| OTG Protocol Support | USB 2.0 OTG |
| Driver-Free Protocol Support | USB Video Class (UVC) |
| Auto Exposure Control (AEC) | Supported |
| Auto White Balance (AWB) | Supported |
| Auto Gain Control (AGC) | Supported |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
| Lens | FOV 210° |
| Interface Type | Type-C |
| Operating Voltage | DC 5V |
| Power Consumption | 1.5W ~ 2W |
| Operating Temperature | 0 ~ 65°C |
| Storage Temperature | -20 ~ 70°C |
| Board Size / Weight | 150 × 55 mm |
| Cable Length | Standard 1 m / 1.5 m |
| Supported OS | Windows 10 |
