5MP USB2.0 CMOS Camera Module 1/2.8 Inch VB1940 Sensor 2592x1944 Resolution for Industrial Vision
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | Sinoseen |
| Zertifizierung: | RoHS |
| Modellnummer: | SNS-GM1133-V1.0 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 5 |
|---|---|
| Preis: | 10-100USD、negotiable |
| Verpackung Informationen: | Tablett+Antistatische Tasche in der Kartonbox |
| Lieferzeit: | 2-3 Wochen |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 500000 Stück/Monat |
|
Detailinformationen |
|||
| Sensortyp: | CMOs | Modulgröße: | Zwei Schichten 38mmX38mm |
|---|---|---|---|
| Audio-Eingang: | Kanal-Audio-MIC-Eingang | Standardschnittstelle: | Hohe Geschwindigkeit USB2.0 |
| Pixelgröße: | 1.4µm x1.4µm | Codiertes Format: | H.265/H.264 |
| Stromverbrauch: | Über 140mA | Gegenstandabstand: | 6CM-200CM |
| Fahrmethode: | Fahr frei | F-Zahl: | 2.2 |
| Betriebsstrom: | 610mA (VGA) | Max Image Circle: | 4,8 mm |
| Kunstwerk: | 8-Schicht-Design | Garantie: | 10 Jahre |
| KOMPATIBILITÄT: | Windows, Mac, Linux | ||
| Hervorheben: | 5MP USB camera module for industrial vision,USB2.0 CMOS camera module with VB1940 sensor,1/2.8 inch USB camera module 2592x1944 resolution |
||
Produkt-Beschreibung

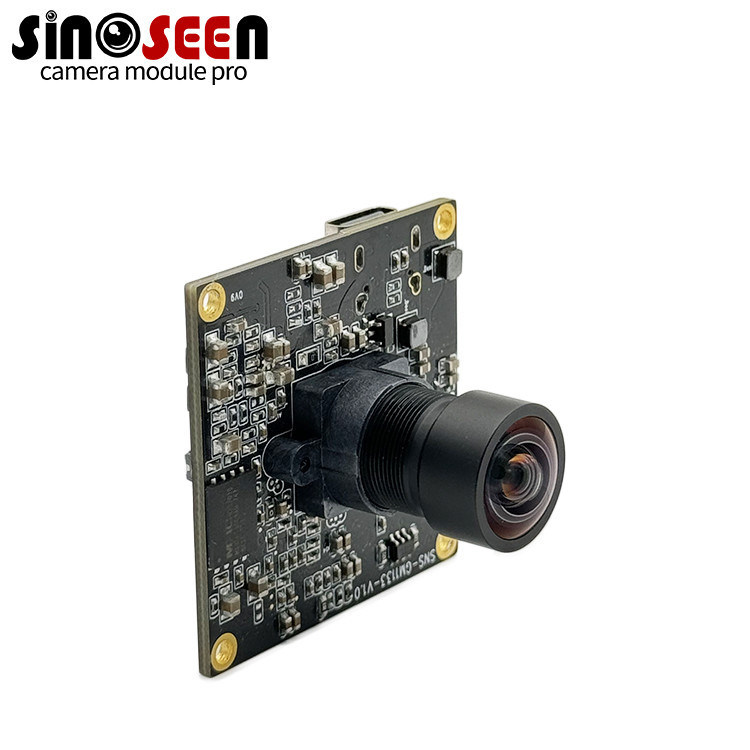

5MP USB2.0 CMOS Camera Module with 1/2.8 Inch VB1940 Sensor
High-Resolution Industrial Vision Solution
The Sinoseen GM1133 5MP CMOS camera module features a 1/2.8-inch VB1940 sensor delivering 2592*1944 resolution images with precise detail and accurate color reproduction. Designed for industrial applications, this USB2.0 camera module provides stable high-speed data transmission for machine vision systems.
Key Features
- 1/2.8-inch VB1940 CMOS sensor with 5MP resolution (2592*1944)
- USB2.0 high-speed interface for easy integration
- MJPG and YUV output formats supported
- High signal-to-noise ratio and wide dynamic range
- Excellent low-light performance with 10-bit raw data output
- Compact and durable design for industrial environments
Technical Specifications
| Specification | Value | Remarks |
|---|---|---|
| Image Sensor Size | 1/2.8inch | |
| Effective Pixels | 2592H*1944V | |
| Pixel Size | 2.0 μm*2.0 μm | |
| Optical Distortion | <0.45% | |
| Image Sensor Data Output | Raw Bayer 10bits | |
| Video Output | MJPG/YUV | |
| Maximum Frame Rates | 2592*1944 @30 FPS 1920*1080 @30 FPS 1600*1200 @30 FPS |
MJPG |
| Digital Interface | Type-C USB2.0 | Cable length: 1.5m |
| Transfer Rates | 480MB/S | |
| Power Requirements | 5V±5% | |
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -20℃ to 70℃ | |
| Supported OS | Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC compliant) |
Lens Specifications
| Parameter | Specification |
|---|---|
| Default Lens | M12*P0.5 |
| Lens Construction | 3G2P+650IR |
| F/NO Aperture | 3.0±5% |
| Effective Focal Length | 4.18 mm±5% |
| Field of View | 82°±3° |
| Focus Type | Fixed focus |
| Shooting Distance | 60cm-∞ |
Applications
- Machine vision systems
- AI recognition and barcode scanning
- Industrial automation and robotics
- Smart terminals and access control
- Quality inspection systems
