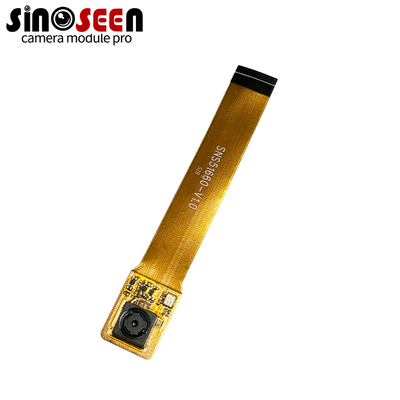

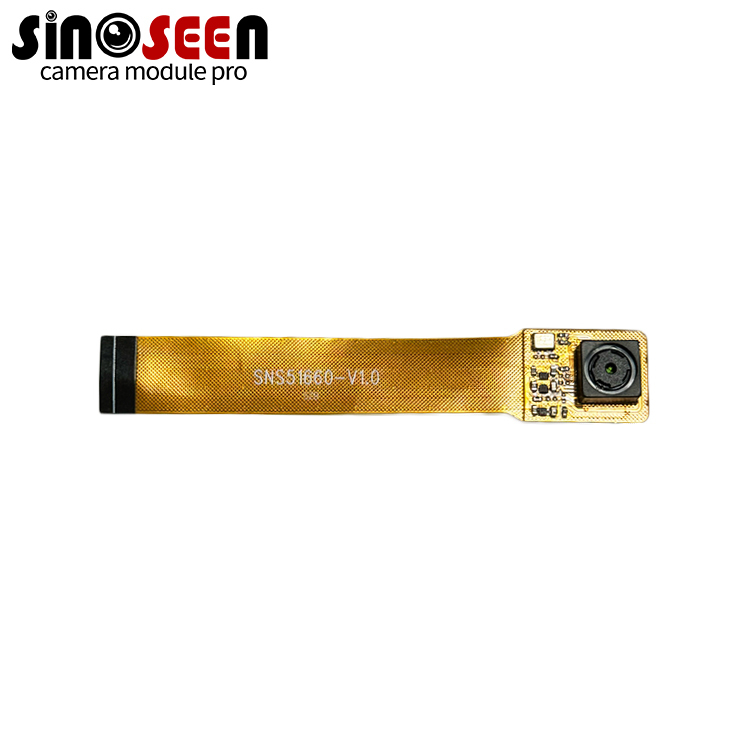

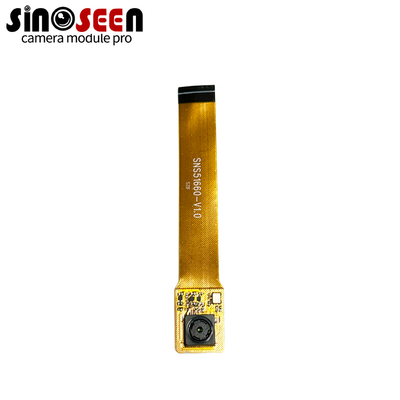

Raspberry Pi OV5647 Camera Module 5MP 1080p 38mm
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Sinoseen |
| Zertifizierung: | RoHS、ISO9001、CE |
| Modellnummer: | XLS51660-V1.0 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 5 |
|---|---|
| Preis: | 10-100USD or negotiable |
| Verpackung Informationen: | Tray+Anti-statische Tasche in Karton |
| Lieferzeit: | 2-3week |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 500000 Stücke/Monat |
|
Detailinformationen |
|||
| Typ:: | Himbeeren-PU-Kamera-Modul | Sensor: | OV5647 |
|---|---|---|---|
| Auflösung: | 1920*1080 | Abmessungen: | 38 mmx38mm (kompatibel mit 32 mmx32mm) |
| Hervorheben: | OV5647 Raspberry Pi Camera Module,Machine Vision Raspberry Pi Camera Module |
||
Produkt-Beschreibung
Raspberry Pi OV5647 Camera Module 5MP 1080p 38mm
Product Specifications
| Attribute | Value |
|---|---|
| Type | Raspberry PI Camera Module |
| Sensor | OV5647 |
| Resolution | 1920×1080 (Full HD) |
| Dimensions | 38mm×38mm (compatible with 32mm×32mm) |
Product Overview
Designed specifically for Raspberry Pi, this OV5647 camera module features a 1/4-inch OmniVision OV5647 image sensor with 1.4-micron pixel OmniBSI™ technology. This advanced sensor delivers high-performance imaging with excellent sensitivity, low noise, and minimal crosstalk for superior image quality in your projects.
The module supports Full HD resolution (1920×1080) and can capture images at 15 frames per second up to QSXGA (2592×1944). It offers multiple output formats including 8-/10-bit raw RGB data and includes comprehensive automatic image control functions.
Key Features
- Raspberry Pi optimized: Designed for seamless compatibility and easy integration
- OV5647 OmniBSI™ technology: Delivers high sensitivity with low noise and crosstalk
- 5MP HD imaging: Supports resolutions up to 2592×1944 for crystal-clear images
- Automatic image control: Simplifies operation with AEC, AGC, and AWB functions
- Versatile output options: Supports multiple formats for flexible image processing
- Compact design: 38mm×38mm form factor compatible with 32mm×32mm installations
