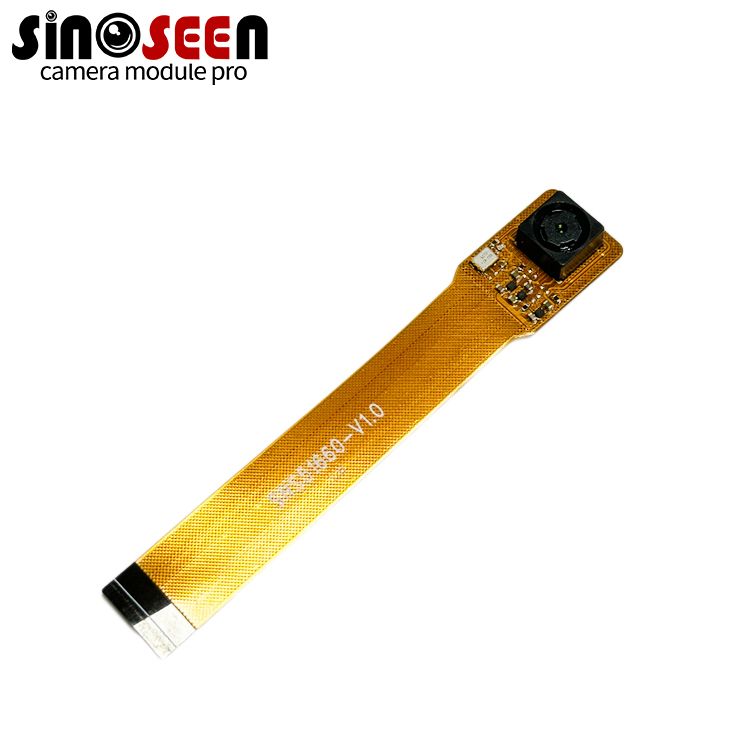

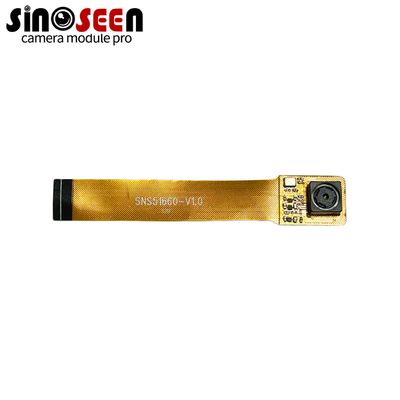

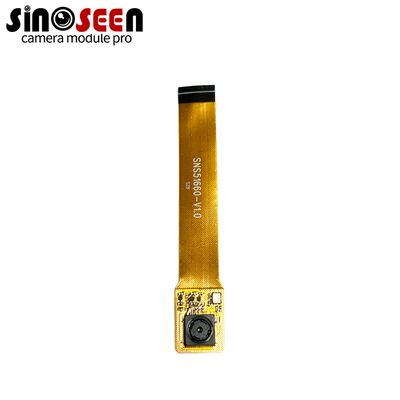

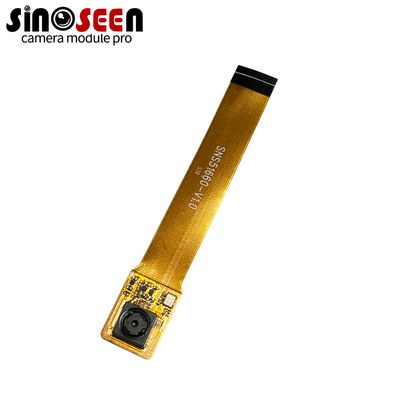

5MP OV5647 Raspberry Pi Camera Module with OmniBSI Technology
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Sinoseen |
| Zertifizierung: | RoHS、ISO9001、CE |
| Modellnummer: | XLS51660-V1.0 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 5 |
|---|---|
| Preis: | 10-100USD or negotiable |
| Verpackung Informationen: | Tablett+Antistatische Tasche in der Kartonbox |
| Lieferzeit: | 2-3 Wochen |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 500000 Stück/Monat |
|
Detailinformationen |
|||
| Typ:: | Himbeeren-PU-Kamera-Modul | Sensor: | OV5647 |
|---|---|---|---|
| Auflösung: | 1920*1080 | Abmessungen: | 38 mmx38mm (kompatibel mit 32 mmx32mm) |
| Hervorheben: | 5MP Raspberry Pi camera module,OV5647 camera module with OmniBSI,Raspberry Pi camera with warranty |
||
Produkt-Beschreibung
| Attribute | Value |
|---|---|
| Type | Raspberry PI Camera Module |
| Sensor | OV5647 |
| Resolution | 1920×1080 |
| Dimensions | 38mm×38mm (compatible with 32mm×32mm) |
| Highlights | Raspberry PI Camera Module, Machine Vision OV5647 Camera Module |
The OV5647 camera module is purpose-built for Raspberry Pi applications, featuring OmniVision's 1/4-inch 5-megapixel OV5647 sensor. With OmniBSI™ technology, it delivers high sensitivity, low noise, and minimal crosstalk for exceptional imaging quality.
The module supports resolutions up to QSXGA (2592×1944) and full HD 1080p output, making it ideal for embedded vision and digital camera projects.
- Raspberry Pi compatibility for seamless integration
- 5MP resolution with 2592×1944 image output
- OmniBSI™ pixel technology for high sensitivity and reduced noise
- Multiple formats: 8-/10-bit raw RGB output
- Automatic functions: AEC, AGC, AWB for simplified operation
- Supports LED/flash strobe, subsampling, and frame synchronization
We offer customized design services, including lens options, PCB layouts, firmware optimization, and interface adjustments to meet project-specific requirements.
