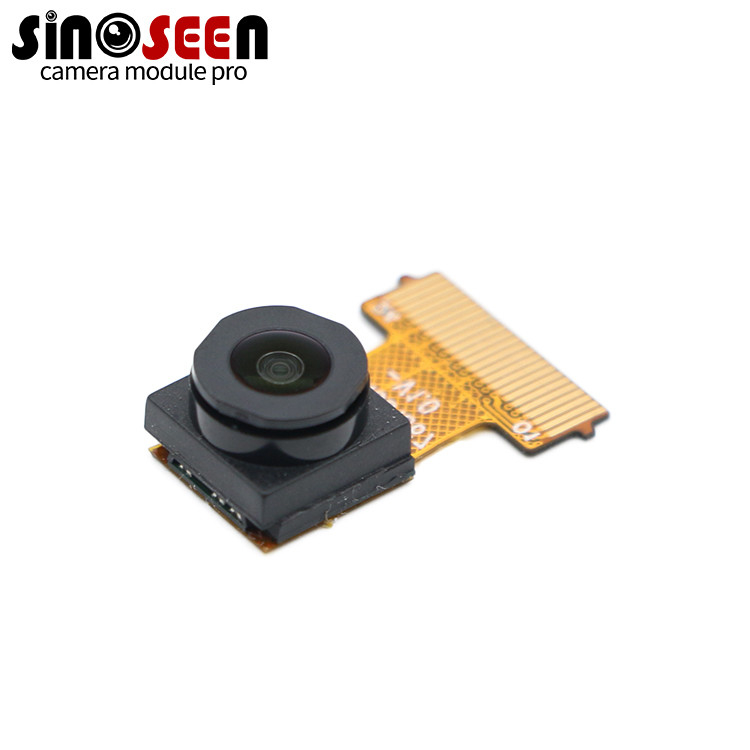

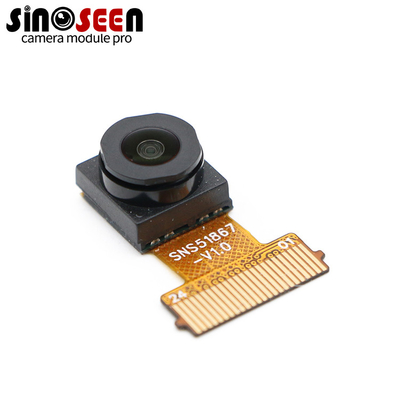

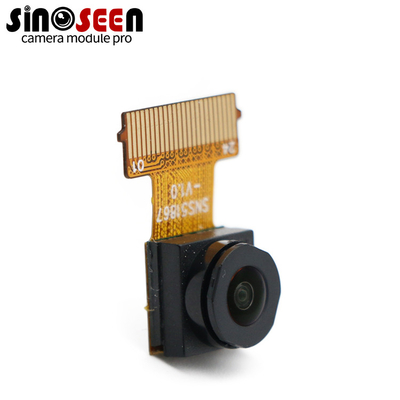

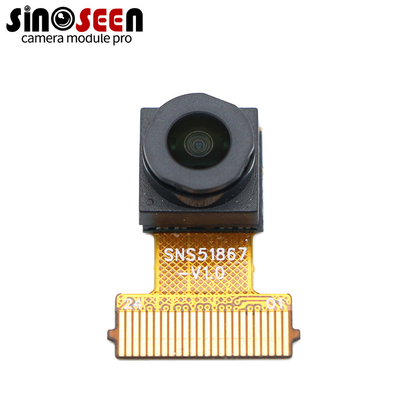

OV5648 MIPI Camera Module 5MP 2592x1944 90FPS Low Noise
Produktdetails:
| Place of Origin: | Shenzhen,China |
| Markenname: | Sinoseen |
| Zertifizierung: | RoHS |
| Model Number: | SNS51867-V1.0 |
Zahlung und Versand AGB:
| Minimum Order Quantity: | 3 |
|---|---|
| Preis: | verhandelbar |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detailinformationen |
|||
| Type: | MIPI Camera Module | Sensor: | OV5648 1/4 inch |
|---|---|---|---|
| Resolution: | 5MP 2592*1944 | Dimensions: | Customizable |
| Frame Rate: | 90FPS | Lens FOV: | 125°(optional) |
| Interface: | MIPI | Feature: | low crosstalk and low noise |
| Hervorheben: | OV5648 MIPI camera module 5MP,MIPI camera module 90FPS low noise,5MP camera module 2592x1944 resolution |
||
Produkt-Beschreibung
- High-performance OV5648 CMOS sensor with 1/4" optical format
- 5MP resolution (2592x1944) with excellent image quality
- MIPI high-speed interface for efficient data transmission
- Ultra-high frame rate up to 90fps for smooth motion capture
- OmniBSI+ technology for superior low-light performance
- Fixed-focus design for consistent clarity
- Low crosstalk and noise for clean imaging
- Customizable dimensions to fit various applications
| Module | SNS51867-V1.0 |
| Sensor | OV5648 CMOS |
| Resolution | 5MP (2592*1944 effective pixels) |
| Pixel Size | 1.4μm × 1.4μm |
| Frame Rate | Up to 90fps (VGA) |
| Focus Type | Fixed focus |
| Interface | 2-lane MIPI |
| Output Formats | 8/10-bit RGB RAW |
| Shutter Type | Rolling shutter |
| Max S/N Ratio | 34dB |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Supported OS | Windows, Linux, MacOS, Android (4.0+) |
The Sinoseen SNS51867-V1.0 Camera Module enhances mobile device imaging capabilities with its advanced MIPI high-speed interconnect technology. Featuring the OmniVision OV5648 CMOS sensor, this module delivers 5MP high resolution (2592x1944) while overcoming traditional speed limitations during large data transfers.
With OmniBSI+ technology, the module provides exceptional low-light performance, high sensitivity, and minimal noise for superior image quality in all lighting conditions. The fixed-focus design ensures consistent clarity with every shot, making it ideal for high-quality photography, smooth HD video recording, and clear video conferencing applications.
Supporting frame rates up to 90fps, this camera module captures high-speed motion with remarkable smoothness and clarity. Its compact, customizable form factor and broad operating system compatibility make it a versatile solution for smartphone, tablet, and embedded imaging applications.
