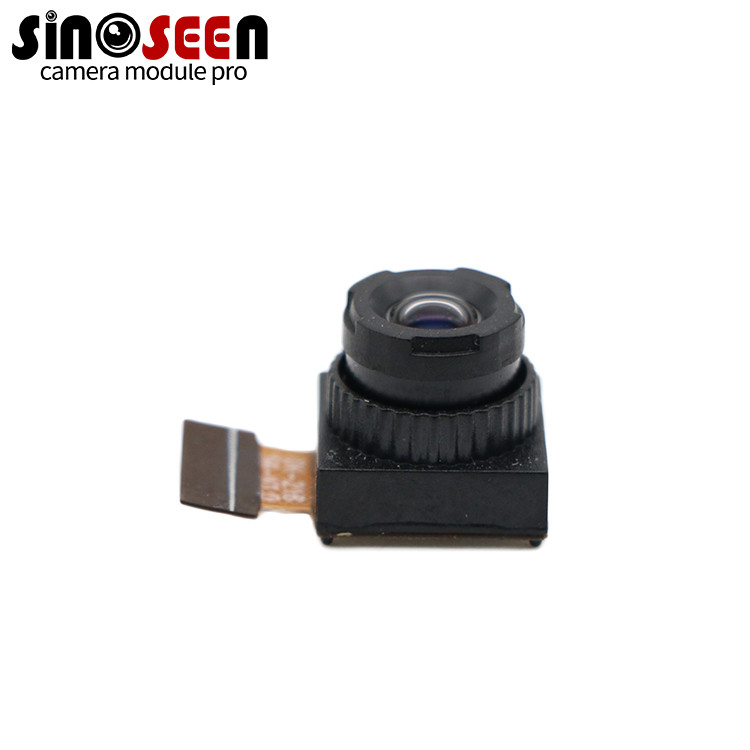

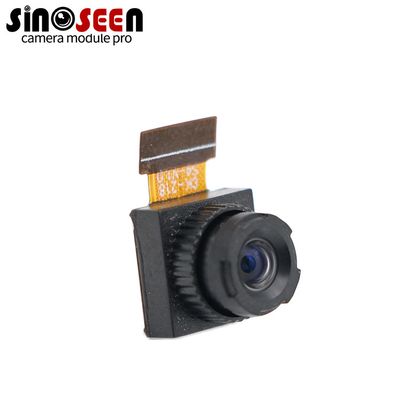

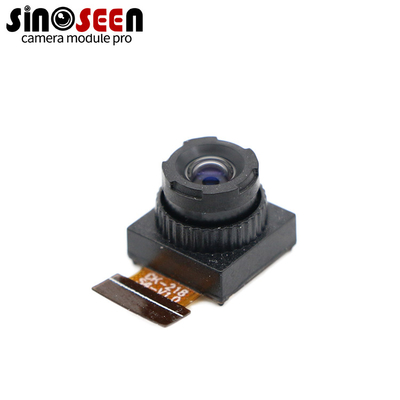

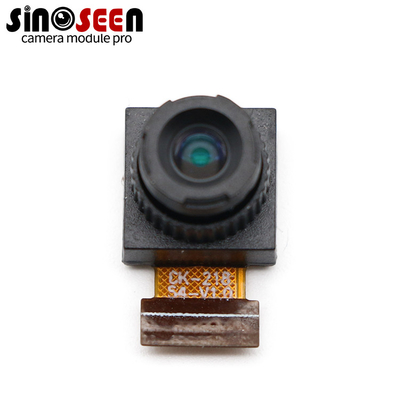

OV2312 MIPI Camera Module with Global Shutter 60fps
Produktdetails:
| Herkunftsort: | Shenzhen, China |
| Markenname: | Sinoseen |
| Zertifizierung: | RoHS |
| Modellnummer: | CK-21854-V1.0 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 3 |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Tray+Anti-statische Tasche in Karton |
| Lieferzeit: | 2-3 Wochen |
| Zahlungsbedingungen: | t/t |
| Versorgungsmaterial-Fähigkeit: | 500000 Stücke/Monat |
|
Detailinformationen |
|||
| Type: | Kameramodul | Sensor: | 1/5' OV2312 |
|---|---|---|---|
| Auflösung: | 2MP 1600*1300 | Abmessungen: | Anpassbar |
| Bildrate: | 60 FPS | Linse FOV: | 68° (optional) |
| Schnittstelle: | MIPI | Merkmal: | Globar-Shutter |
| Hervorheben: | MIPI camera module global shutter,60fps MIPI camera module,global shutter camera module 60fps |
||
Produkt-Beschreibung
High-Speed 60fps OV2312 Video and Global Shutter for Real-Time Image Processing with this MIPI Camera Module
| Attribute | Value |
|---|---|
| Type | Camera Module |
| Sensor | 1/5' OV2312 |
| Resolution | 2MP 1600*1300 |
| Dimensions | Customizable |
| Frame Rate | 60FPS |
| Lens FOV | 68°(optional) |
| Interface | MIPI |
| Feature | Globar shutter |
Product Overview
This MIPI camera module features the OV2312 CMOS sensor with global shutter and RGB-IR capabilities. Offering full 2MP resolution at 60fps, it's ideal for systems that require both speed and accuracy. Its ability to detect both visible and infrared light makes it adaptable to diverse lighting scenarios, from bright daylight to dim environments.
Product Highlights
- High-speed 60fps video for real-time image processing
- Global shutter ensures crisp images with no motion distortion
- RGB-IR dual-band sensitivity improves object detection accuracy
- Designed for compact integration in embedded systems
- MIPI interface for high-efficiency communication
Use Cases
- ADAS (Advanced Driver Assistance Systems)
- Biometric recognition in wearables
- Industrial robotics and inspection
- Smart retail analytics
Specification
| Module | CK-21854-V1.0 |
|---|---|
| Sensor | OV2312 CMOS |
| Pixel | 2MP |
| Most effective pixels | 1600*1300 |
| Pixel Size | 3um*3um |
| Image area | 4857.7um*3955.9um |
| Frame rate | 30fps |
| Shutter Type | Globar shutter |
| Focus type | Fixed focus |
| S/N ratio | 37.4 dB |
| Dynamic range | 68 dB |
| Power supply | analog:2.8v core:1.2v I/O:1.8v |
| Output interface | 2-lane MIPI serial output and DVP parallel output |
| Output formats | 10-bit RGB-IR RAW |
| lens size | 1/2.9' |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Customization Services Available
Choose from custom PCB layouts, module sizes, lens assemblies, and firmware tuning. Whether for prototyping or mass production, we provide fast, flexible camera customization for your specific use case.
About Sinoseen
Founded in 2016, Sinoseen is your trusted partner for custom camera modules. Our vertically integrated production system allows us to serve a wide range of industries with dependable quality and rapid delivery times.
