Herkunftsort:
CHINA
Markenname:
Sinoseen
Zertifizierung:
RoHS
Modellnummer:
SNS52005-V1.0

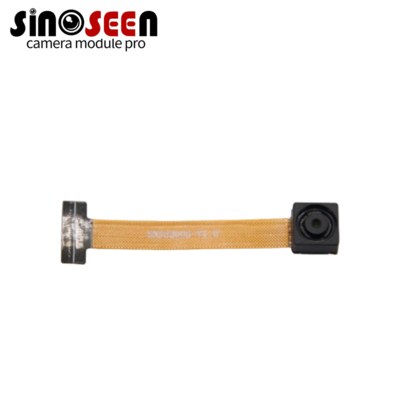

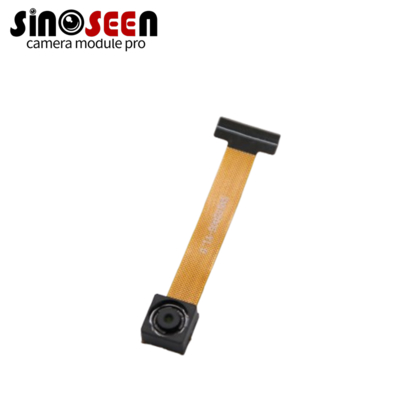

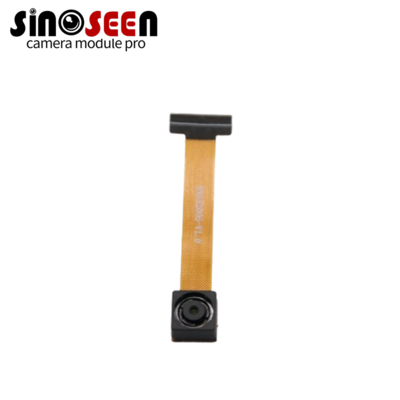

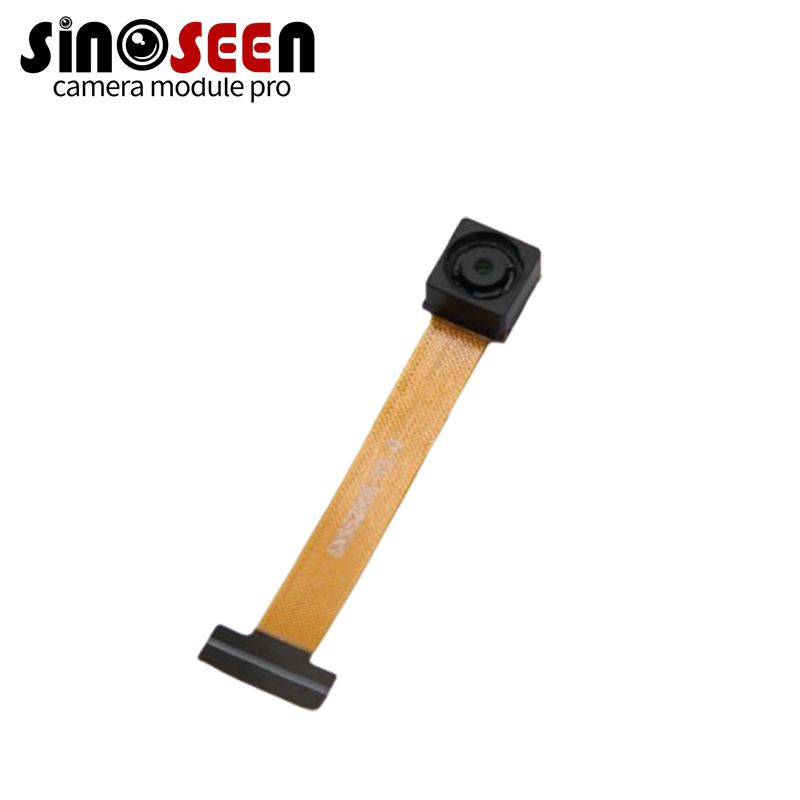

The OV5648 CMOS sensor is a compact and efficient solution for photo and video capture. With a 2592 x 1944 pixel array, it delivers 5MP detail.
For video, it supports 1080P at 30fps, 720P at 60fps, and VGA at 90fps, providing smooth motion across formats. Its 1.4um pixel size ensures balanced performance under different light conditions.
The sensor features RAW output, a low power footprint, and wide temperature support, making it reliable for mobile devices, security systems, and automotive DVRs.
5MP 2592 x 1944 photos
Full HD 1080P video at 30fps
Smooth 720P 60fps and VGA 90fps
RAW output flexibility
Compact and energy efficient
| Item | Specification |
|---|---|
| Active Array Size | 2592 × 1944 (QSXGA) |
| Pixel Size | 1.4 µm × 1.4 µm |
| Image Area | 3673.6 µm × 2738.4 µm |
| Lens Size | 1/4" |
| Lens Chief Ray Angle | 29.1° |
| Output Formats | 8-bit / 10-bit RGB RAW |
| Shutter Type | Rolling shutter |
| S/N Ratio (Max) | 34 dB |
| Dynamic Range | 67 dB @ 8× gain |
| Sensitivity | 600 mV/Lux-sec |
| Dark Current | 8 mV/s @ 50°C junction temperature |
| Maximum Image Transfer Rates | - QSXGA (2592 × 1944): 15 fps - 1080p: 30 fps - 960p: 45 fps - 720p: 60 fps - VGA (640 × 480): 90 fps |
| Input Clock Frequency | 6 ~ 27 MHz |
| Power Supply | - Core: 1.5V ±5% (with embedded 1.5V regulator) - Analog: 2.6 ~ 3.0V (2.8V typical) - I/O: 1.7 ~ 3.0V |
| Power Requirements | - Active: 198 mW - Standby: 35 µW |
| Temperature Range | - Operating: -30°C ~ 70°C (junction temperature) - Stable Image: 0°C ~ 50°C (junction temperature) |
| Die Dimensions | 5000 µm × 4800 µm |
