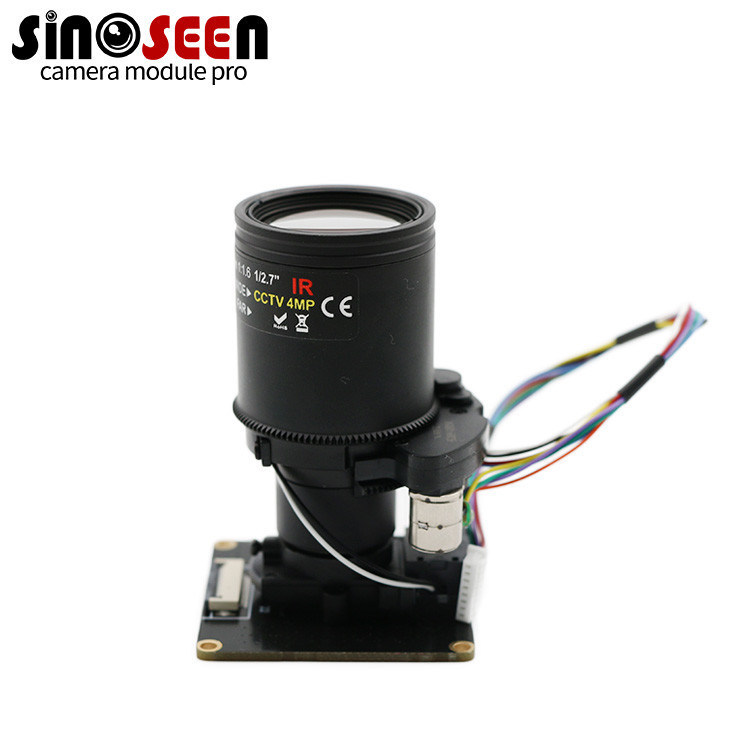

48MP IMX586 MIPI Camera Module with 6X Optical Zoom Lens for Ultra-High-Resolution Imaging
Produktdetails:
| Herkunftsort: | Shenzhen, China |
| Markenname: | Sinoseen |
| Zertifizierung: | RoHS |
| Modellnummer: | SNS481828-V1.0 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 3 |
|---|---|
| Preis: | 10-100USD、negotiable |
| Verpackung Informationen: | Tablett+Antistatische Tasche in der Kartonbox |
| Lieferzeit: | 2-3 Wochen |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 500000 Stück/Monat |
|
Detailinformationen |
|||
| Typ: | MIPI -Kamera -Modul | Sensor: | IMX586 |
|---|---|---|---|
| Auflösung: | 48MP 8000*6000 30fps | Abmessungen: | Anpassbar |
| Linse FOV: | 90° (optional) | Fokusart: | Optischer Zoom |
| Schnittstelle: | MIPI | Besonderheit: | Leistung bei schlechten Lichtverhältnissen |
| Hervorheben: | 48MP MIPI camera module,IMX586 camera with optical zoom,6X zoom MIPI camera module |
||
Produkt-Beschreibung
48MP IMX586 MIPI Camera Module with 6X Optical Zoom Lens for Ultra-High-Resolution Imaging
Product Description
This 48MP IMX586 MIPI camera module delivers exceptional image clarity and precision. Featuring a Quad Bayer pixel array, it combines four adjacent pixels to enhance low-light performance and reduce image noise, ensuring vivid, detailed captures in various environments.
With a 6X optical zoom lens, this module allows true optical magnification without losing image sharpness. Unlike digital zoom, optical zoom adjusts lens elements physically for clean, distortion-free details, ideal for long-distance photography.
It supports full-resolution 8000*6000 output at 30fps and 1080P video at 60fps, making it suitable for smart devices, surveillance, and industrial applications requiring ultra-high-resolution imaging.
Highlights
- 48MP IMX586 CMOS sensor with 8000*6000 resolution
- 6X optical zoom lens for lossless magnification
- Quad Bayer pixel technology for improved low-light imaging
- MIPI interface for high-speed data transmission
- Full-resolution 30fps / 1080P 60fps video capture
Specification
| Module No | SNS481828-V1.0 |
|---|---|
| Pixel Size | 0.8um*0.8um |
| Effective Pixels | 48MP 8000*6000 30fps |
| Video output | Raw Bayer10bit/8bit |
| Active Array Size Video Rate | Full resolution@30FPS,1080P@60FPS |
| Sensor Type | Omnivision IMX586 |
| Lens view | FOV90°(optional),F/N(optional) |
| TV Distortion | <1% |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
| Operating temperature | 0～60℃ |
| Storage temperature | -20～70℃ |
| Dimensions | Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3 weeks, if it is a MIPI or DVP camera module, it usually takes 10-15 days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
