2MP Dual Lens Camera Module with Fill Light and USB2.0 Interface for Embedded and Industrial Applications
Produktdetails:
| Herkunftsort: | Shenzhen, China |
| Markenname: | Sinoseen |
| Zertifizierung: | RoHS |
| Modellnummer: | SNS-SM1118-V1.0 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 3 |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Tablett + antistatischer Beutel im Karton |
| Lieferzeit: | 2-3 Wochen |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 500.000 Stück/Monat |
|
Detailinformationen |
|||
| Typ: | 2MP-Kameramodul | Sensor: | 1/3'GC2083 CMOS |
|---|---|---|---|
| Auflösung: | H1920*V1080 | Abmessungen: | (anpassbar) |
| Pixelgröße: | 2,7 um x 2,7 um | Fokustyp: | Fester Fokus |
| Schnittstelle: | USB | Besonderheit: | HD |
| Hervorheben: | 2MP dual lens camera module,USB2.0 camera module with fill light,industrial dual lens camera module |
||
Produkt-Beschreibung

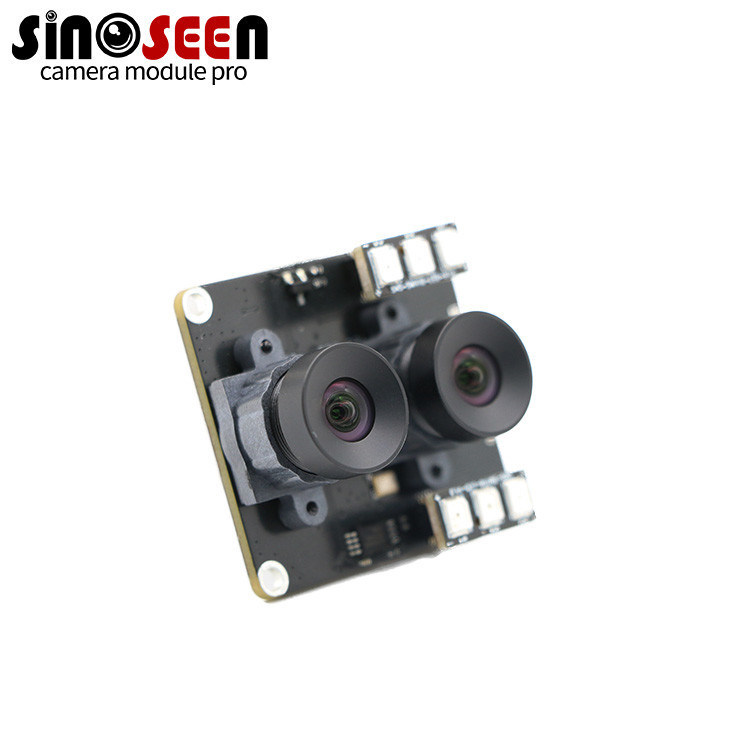

2MP Dual Lens Camera Module with Fill Light and USB2.0 Interface
Product Overview
This 2MP dual-lens USB camera module integrates two 1/3" GC2083 CMOS sensors, providing flexibility for stereo imaging or dual-view capture. The dual configuration enhances depth perception and imaging accuracy, making it ideal for industrial inspection and embedded vision projects.
Equipped with a fill light, it maintains strong visibility in low-light or enclosed spaces, improving image consistency and reducing noise. The USB 2.0 interface ensures easy connection to embedded processors or computer systems without additional drivers.
With adjustable parameters like brightness, contrast, and exposure, plus built-in AEC, AWB, and AGC, it delivers stable imaging across variable conditions. The compact and efficient design fits seamlessly into customized camera solutions.
Key Features
- 2MP GC2083 CMOS sensors with 1920x1080 resolution
- Dual-lens design supports stereo and dual-view imaging
- Built-in fill light improves illumination and clarity
- USB 2.0 interface for fast and simple integration
Technical Specifications
| Model No | SNS-SM1118-V1.0 |
|---|---|
| Sensor | 1/3'GC2083 CMOS |
| Pixel | 2 Mega Pixel |
| Most effective pixels | H1920*V1080 |
| Pixel Size | 2.7um x2.7um |
| Image Area | 5808µm x 3288µm |
| Compression format | YUV2 / MJPG |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Interface type | USB2.0 |
| Adjustable parameters | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Operating temperature | -20~80℃ |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+ |
Application Areas
Imaging and vision solutions
Machine vision
Future Security
Camera Module Customized solutions
Iris recognition technology
Face recognition
Smart home solutions
Professional camera Modules
Airborne camera Modules
UAV Special Modules
Aerial filming solutions
Mobile Phone Camera module
Optronics Solutions
Video technology solutions
Manufacturer Information
Shenzhen Sinoseen Technology Co., Ltd - China top 10 camera module manufacturer. We customize all kinds of USB/MIPI/DVP camera modules as per your request.
